Description

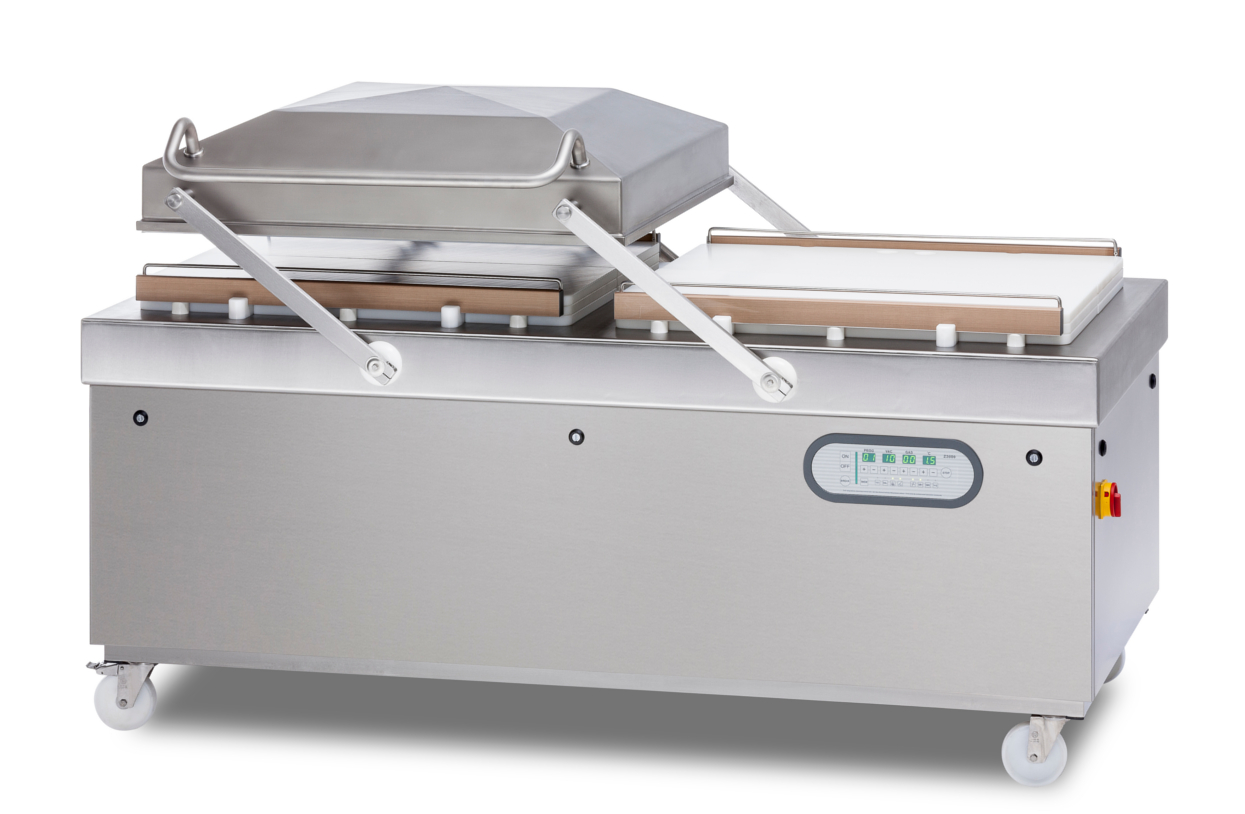

Equipment of the vacuum machine
Z 3000 digital control
- Z 3000 sensor control with 99 program memories
in splashproof design. - Quick Stop for handy packaging of liquids
- Sensor-controlled process control for maximum cost-effectiveness
- Sensor-controlled gas flush control for consistently
high quality - Evaporating point recognition for the automatic packaging of liquid products; flexibly adjustable to customer requirements
Further equipment features
- Robust stainless steel lid – with optional transparent
panel for process monitoring - 4 robust stainless steel rollers, 2 of them adjustable
- Step vacuum function for high-outgassing products
- Service function: promotes the long life of the machine and
optimises service intervals - Initial supply of consumables
(Teflon tape, sealing wire) included - High-quality Busch vacuum pump
Sealing system
- Double-seam and cut-off sealing as standard,
excess bag length can be torn off: Germs and unpleasant
odours are avoided. - Plug-in system for the sealing bars, secure fastening
without cables. - High-pressure sealing, for reliable sealing even with
thick bag thicknesses
Chamber and shelves
- Robust technology in stylish finish made of extremely
high-quality stainless steel - Optimal cleaning, designed according to HACCP guidelines
- Insertion plates for level adjustment, stylish finish
with rounded corners made of
food-grade PE materials - Stainless steel tilting lid
- The lid opens upwards
| Chamber int. dimensions | 960 x 960 x 230 mm |
| Seal length | 4 x 850 mm |
| Vacuum pump | 160 m³/h, 250 m³/h or 300 m³/h |
| Weight | 600 kg or 650 kg |
| Power connection | 3 phases, 230 V / 400 V, 50 Hz (Special voltages upon request) |
