Description

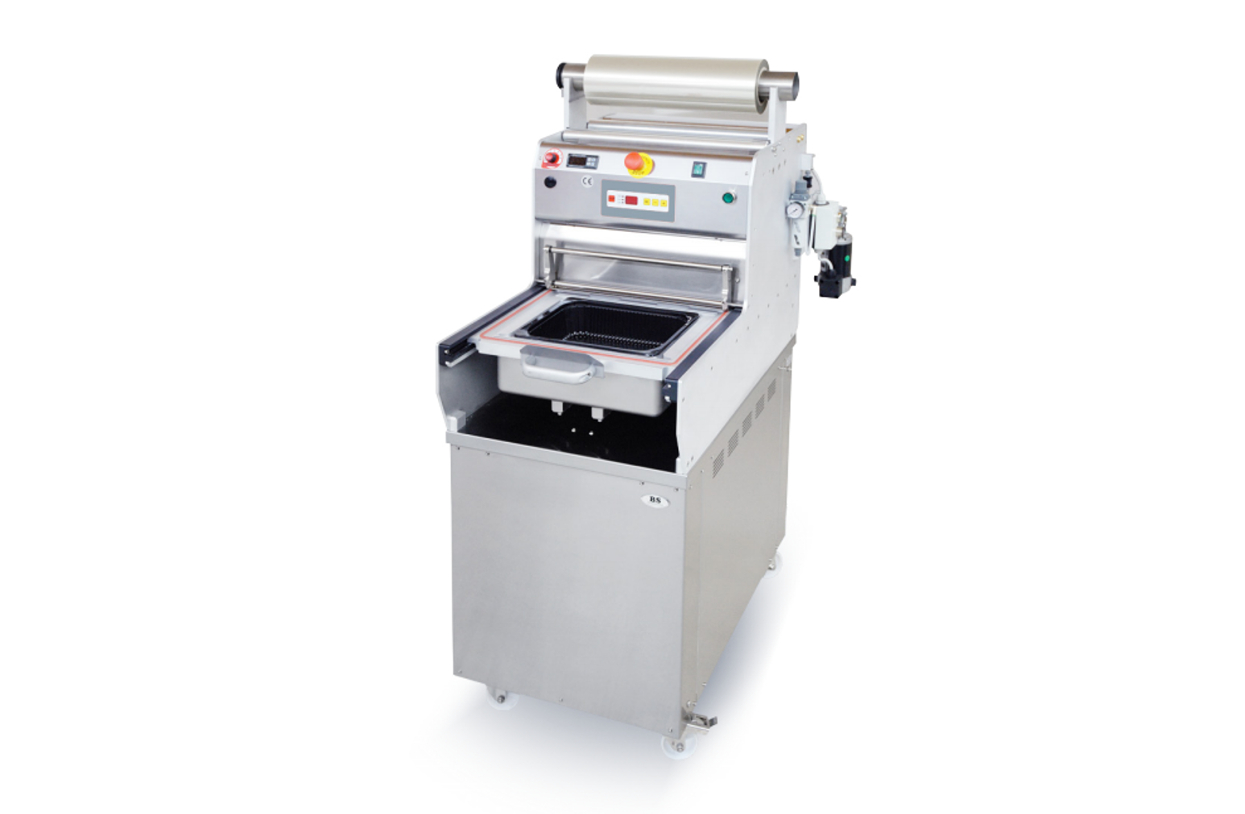

Semi-automatic sealing device BS-40
Our BS-40 model is a plug-in all-rounder with many special accessories,
like automatic foil conveyance, quiet compressor and much more. A wide
variety of tray types of diverse materials are evacuated, gassed and sealed.
General information
| Max. width of foil: | 340 mm |
| Usable height: | 100 mm |
| Ext. dimensions: | 530 x 820 x 1290 mm |
| Vacuum pump: | 21 m³/h |
| Weight: | 125 kg |
| Compressed air connection: | 6 bar |
Sealing plate
Maximum height of the tray: 100 mm. Frames/ uses can not be confirmed before having checked a sample of the trays. Different uses are available upon request.
| USES | WITH OUTLINE CUTTING AND AUTOMATIC FOIL COLLECTION |
|---|---|
| Single use |  350 x 275 mm |
| Double use |  275 x 175 mm |
| Triple use |  275 x 100 mm |
| Fourfold use |  175 x 130 mm |
| Sixfold use |  95 x 95 mm          ø 95 mm |
